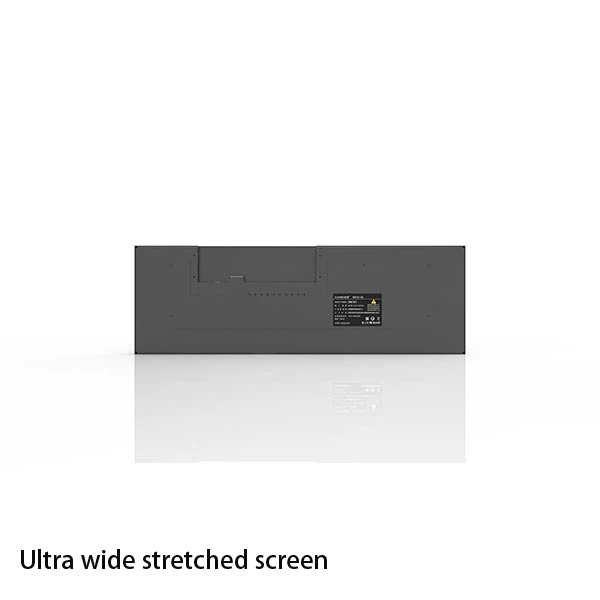

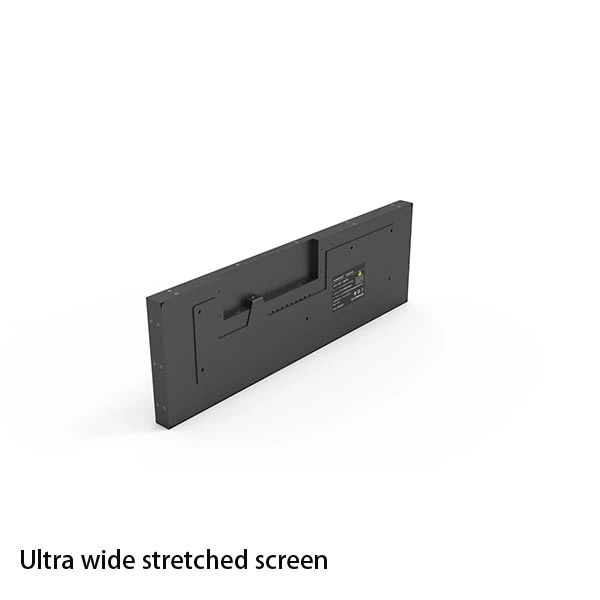

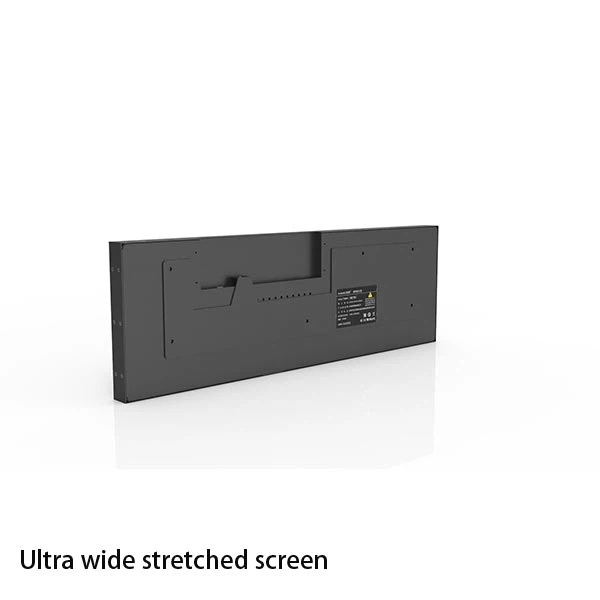

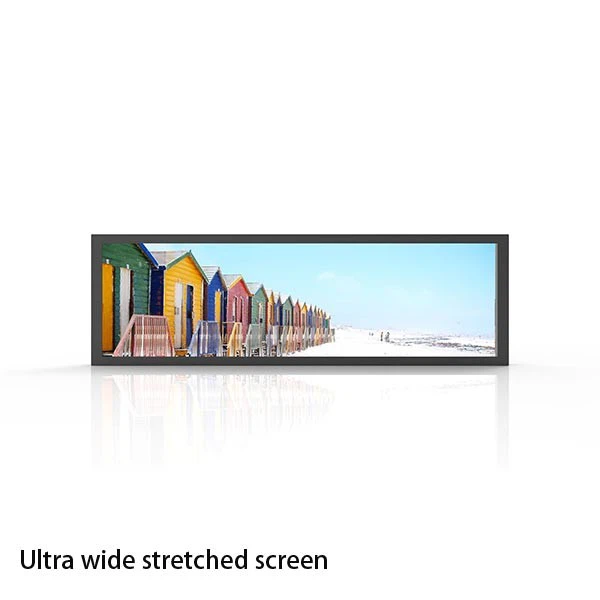

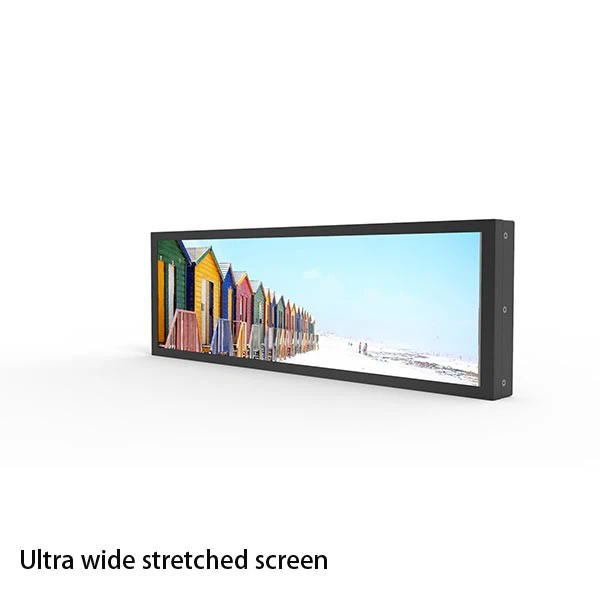

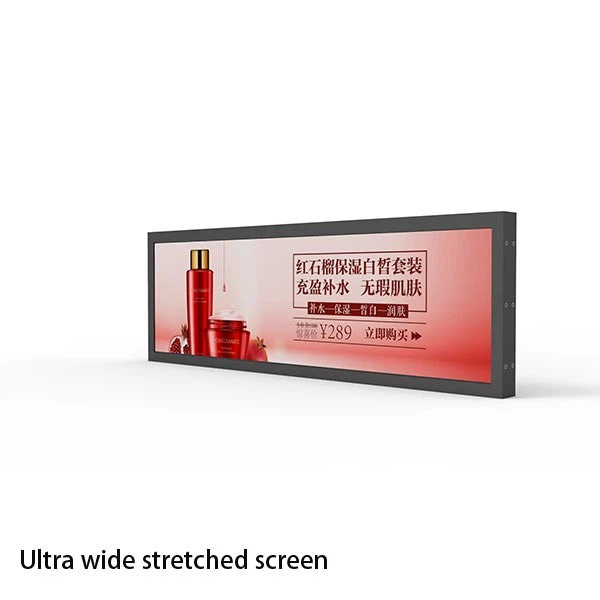

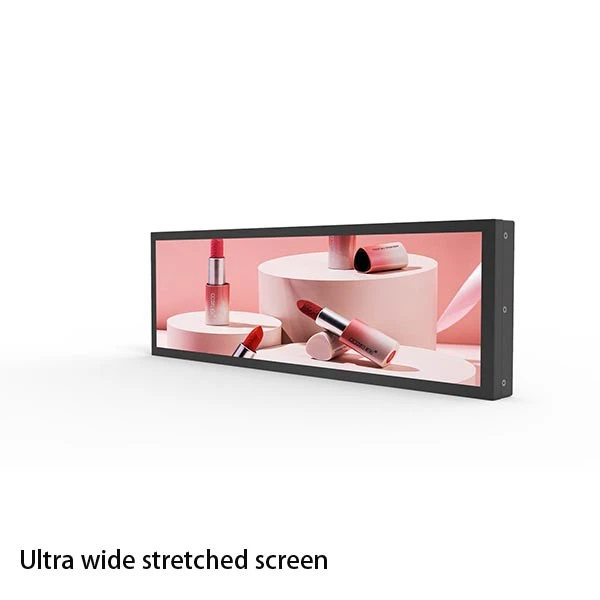

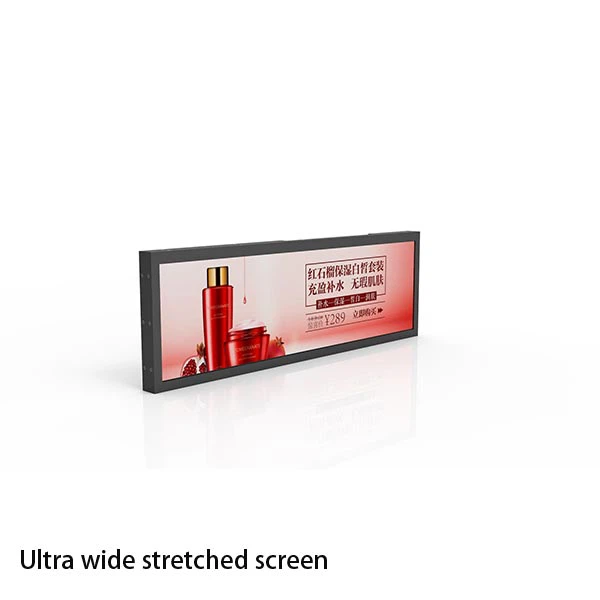

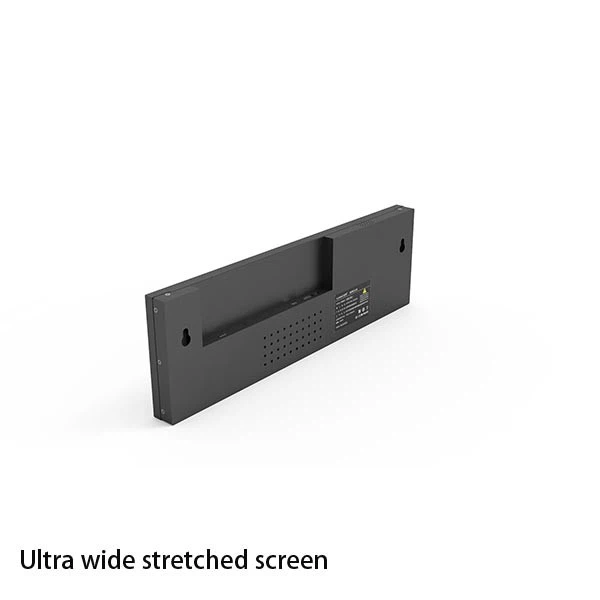

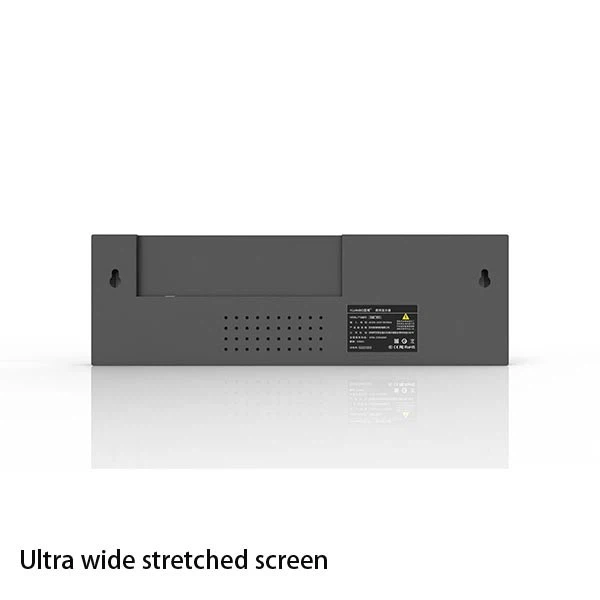

Ultra-wide Stretched Smart Bar LCD Screen

The most popular application for Ultra-wide stretched Smart Bar LCD screen is in public transportation displays including route displays, onboard trains, streetcars, and buses, advertising displays in airports, bus stations, and train stations, and in some cases, they are mounted on top of taxi cabs as mobile ad space.

Send Inquiry

Features

The Ultra-wide stretched Smart Bar LCD screens are also widely used as price tag in shops.

Our Ultra-wide stretched Smart Bar LCD screen are flexible and easy to operate.

1. Real time management and release on mobile, iPad and PC.

2. Remote advertising terminal software version upgrading and OTA upgrading.

3. Displaying contents for the same group advertising terminals can be synchronized, and interval is less than 500ms.

4. Set terminals’ properties by mobile phone, including volume, rotation angle, time zone, turn off and on.

5. Remotely monitoring the network status, system status and hardware status, and displaying contents.

6. Multiple forms of rolling subtitles and bullet screens are supported, the font, size and content of subtitles and bullet screens are editable.

7. Scheduling supports multiple priority levels, and supports shim/normal/interrupt/emergency message priority.

8. Scheduling supports multiple recurring modes, recurring per day/week/month.

9. Multiple media, like video, picture, marquee, subtitle, RSS, component, PPT, PDF are supported.

10. Support self-built template mobile phone 1-key call to modify at any time.

Size		15.1"	21.2"	23.1"	23.7"	24"	24.5"	28"	50.1"	35"
Display parameters	Panel type	a-Si TFT LCD
	Display area (HxV mm)	374.78 x64.5	518 x148	518 x148	597.89 x74.74	597.89 x112.104	597.6 x168.08	699.84 x131.22	1209.6 x397	878.4 x48.19
	Display Proportion	3:1	>3:1	>3:1	>3:1	>3:1	>3:1	>3:1	>2:1	>3:1
	Resolution	1280 x235	1920 x550	1920 x158	1920 x240	1920 x360	1920 x540	1920 x360	1920 x630	288 x158
	Display color	16.7M
	Dot Pitch (HxV)	0.630 x0.630	0.090 x0.270	0.10167 x0.305	0.1038 x0.3114	0.090 x0.270	0.0976 x0.2928	0.1215 x0.3645	0.210 x0.630	0.101667 x0.305
	Brightness	600nits	400nits	250nits	500nits	400nits	500nits	700nits	500nits	300nits
	Contrast	1500:1	1500:1	1500:1	1500:1	1500:1	1500:1	1500:1	2000:1	1500:1
	Viewing angle	178 degree
	Response time	8ms
	Refresh rate	60HZ
	Manual language	Chinese/English
System parameters	CPU	ARM Corter-A35 Quad core
	DDR	1G DDR3
	Flash	8G EMMC
	Wifi	2.4G WIFI
	Bluetiith	N/A
	Network card	N/A	N/A	N/A	N/A	LAN x1	N/A	LAN x1	LAN x1	N/A
	Interface support	TF card x1, OTGx1, Type Cx1
	System version	Android 8.1
Power	Input Voltage	110-240V AC, 50/60HZ
	Max. Power consumption	25W	20W	20w	26W	35W	35W	42W	65W	38W
	Standby power consumption	<0.1W
Other	Storage temperature	-20 to 60 Celsius degrees
Other	Product size (mm)	403 x92 x26	544 x178 x28	597 x60 x16	622 x994 x27	629 x144 x52	622 x192 x41	750 x181 x55	1248 x435 x46	892 x60 x16
